62930 IEC131
TUV Rheinland 62930 IEC 1311×1.5mm²~35mm²
★ Can be customized for customer samples, please consult:
Category:
Keywords:
DC Solar PV Cable
Product details
TUV Rheinland 62930 IEC 1311×1.5mm²~35mm²
TECHNICAL DATA
- Rated voltage:AC:Uo/U=1.0/1.0KV,DC:1.5KV
- Voltage test on completed cable:AC:6.5KV DC:15KV,5min
- Ambient temperature:-40 ℃~+90 ℃
- MaxTemperature at conductor:+ 120 ℃
- The expected period of use is 25years(Ambiet temperature:-40 ℃Cup to+90 ℃)
- The permitted short -circuit-temperature refer to a period of 5s is+200 ℃
- Bending radius:≥4xφ(D<8mm)≥6xφ(D≥8mm)
- Compatibility test:IEC60811-401:2012,135±2/168h
- ACID and Alkali resistance:EN60811-2- 1
- Cold bending test:IEC60811-506
- Damp heat test:IEC60068-2-78
- Sunlight resistance:IEC62930
- O-zone resistance test of finished cable:IEC60811-403
- Flame test:IEC60332- 1-2
- Smoke density:IEC61034-2,EN50268-2
- Assessment of halogens for all non-metallic material:IEC62821-1

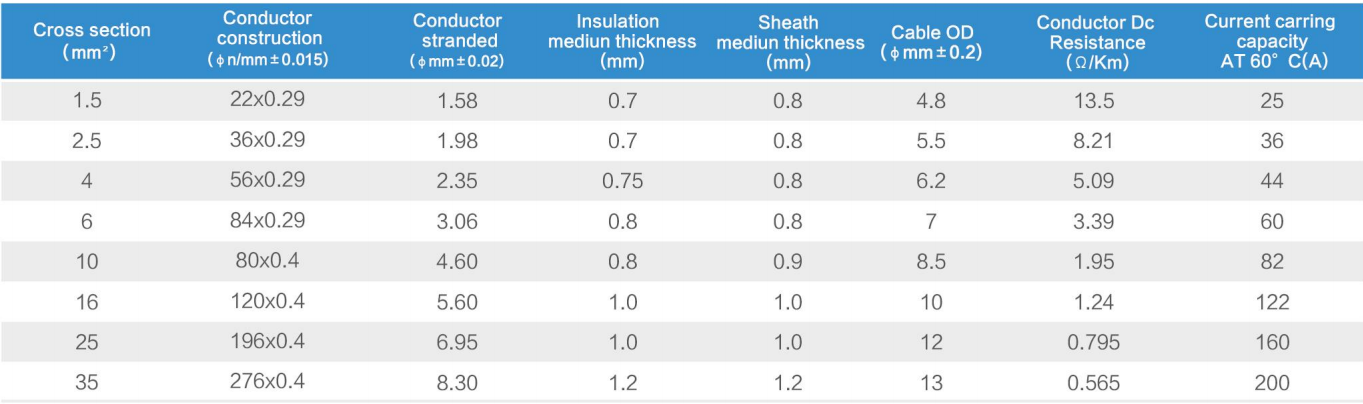

THE STRUCTURE OF CABLE
Printing(4mm²)
