PV1-F Double parallel solar cable
TUV Rheinland 2PfG 1169 PV1-F 2×2.5mm²~10mm²
★ Can be customized for customer samples, please consult:
Category:
Keywords:
DC Solar PV Cable
Product details
TUV Rheinland 2PfG 1169 PV1-F 2×25mm²~10mm²
TECHNICAL DATA
- Rated voltage:AC:Uo/U=10/10KV,DC:18KV
- Voltage test on completed cable:AC:65KV DC:15KV,5min
- Ambient temperature:-40 ℃~+90 ℃
- Max Temperature at conductor:+120 ℃
- The expected period of use is 25years(Ambiet temperature:-40 ℃ Cup to+90 ℃)
- The permitted short -circuit-temperature refer to a period of 5s is+200 ℃
- Bending radius:≥4xφ(D<8mm)≥6xφ(D≥8mm)
- Resistance against acid and alkaline solution:EN60811-2- 1
- Cold bending test:EN60811- 1-4
- Damp heat test:EN60068-2-78
- Sunlight resistance:HD605/A1
- O-zone resistance test of finished cable:EN50396
- Flame test:EN60332- 1-2
- Smoke density:IEC61034,EN50268-2
- Content of halogen acid gas:IlEC670754- 1 EN50267-2-1

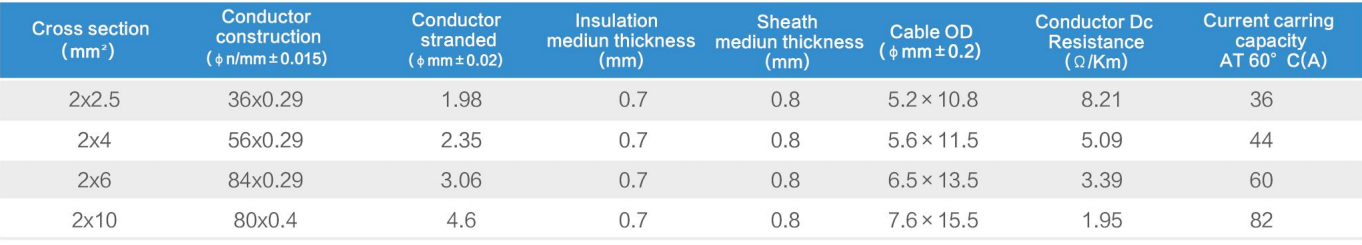

THE STRUCTURE OF CABLE
Printing(2×4mm²)
