UL 4703
UL4703 PV 16AWG~2AWG
★ Can be customized for customer samples, please consult:
Category:
Keywords:
DC Solar PV Cable
Product details
UL4703 PV 16AWG~2AWG
TECHNICAL DATA
- Rated voltage:(U):U=1.0KV及2.0KVAC
- Test voltage:(Uo):U=1.0KV,2.0KV
18~10 AWG,Uo=6.0KV,50HZ,1min
8~2 AWG,Uo=7.5KV,50HZ,1min
1~4/0 AWG,Uo=9.0KV,50HZ,1min
- Ambient temperature:-40 ℃~+90 ℃
- Flame test:UL1581 VW- 1
- Relative permittivity:UL854
- Stability factor:UL854
- Sunlight resistance:UL2556
- Cold bending test:UL854

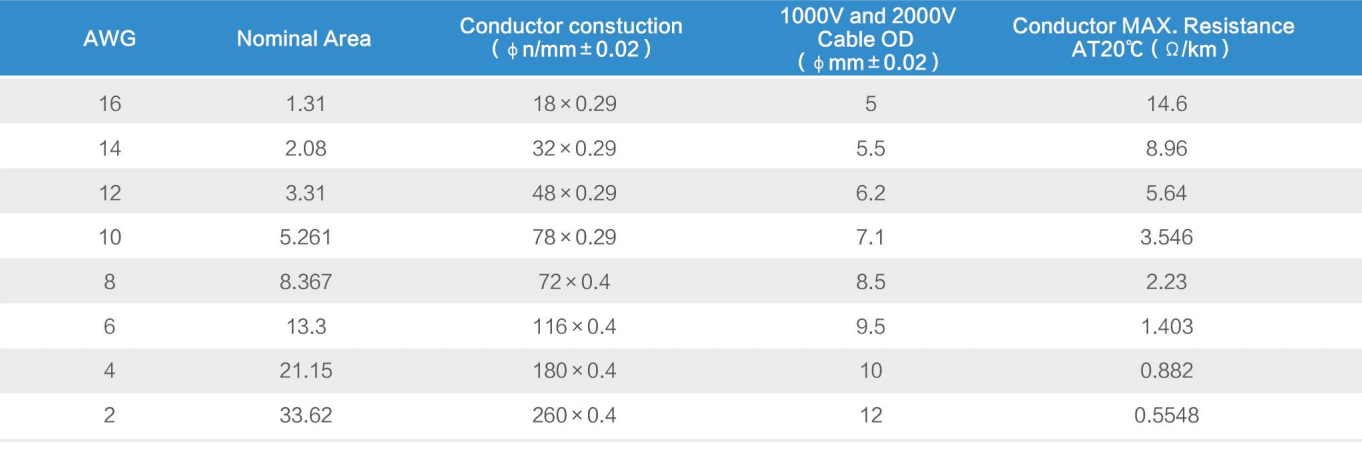

THE STRUCTURE OF CABLE
Printing(12AWG)
