Photovoltaic Aluminum Alloy cable
PPP 11029A PV 1.5KVDC-AL1×4mm²~10mm²
★ Can be customized for customer samples, please consult:
Category:
Keywords:
DC Solar PV Cable
Product details
PPP 11029A PV 1.5KVDC-AL1×4mm²~10mm²
TECHNICAL DATA
- Rated voltage:DC:1.5KV AC:0.6/1.0KV
- Voltage test on completed cable:AC:6.5KV DC:15KV,5min
- Ambient temperature:-40 ℃~+90 ℃
- The expected period of use is 25years(Ambiet temperature:-40 ℃ Cup to+90 ℃)
- High temperature resistance:EN60216-2
- Ozone resistance:EN50396
- ACID and Alkali resistance:EN60811-2-1
- Low temperature resistance:EN60811-1-4
- Weathering/Uv-resistance:EN50289-4-17
- Ozone resistance at complete cable:EN60754-1/EN60754-2
- Test under fire conditions:EN60332-1-2

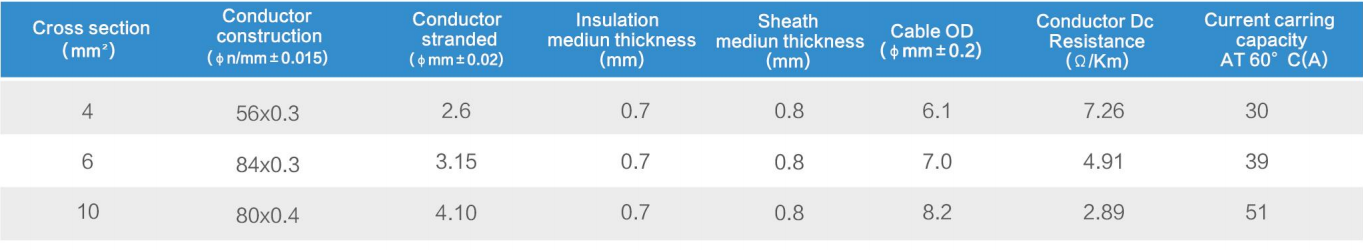

THE STRUCTURE OF CABLE
Printing(4mm²)
